Purpose-built for flush mounting into walls and ceilings
Ci100.2QR delivers KEF's renowned audio quality as unobtrusively as possible. Part of our Soundlight Series of unobtrusive architectural speakers, the Ci100.2QR is meant to match the aesthetics of flush-mounted downlighting.

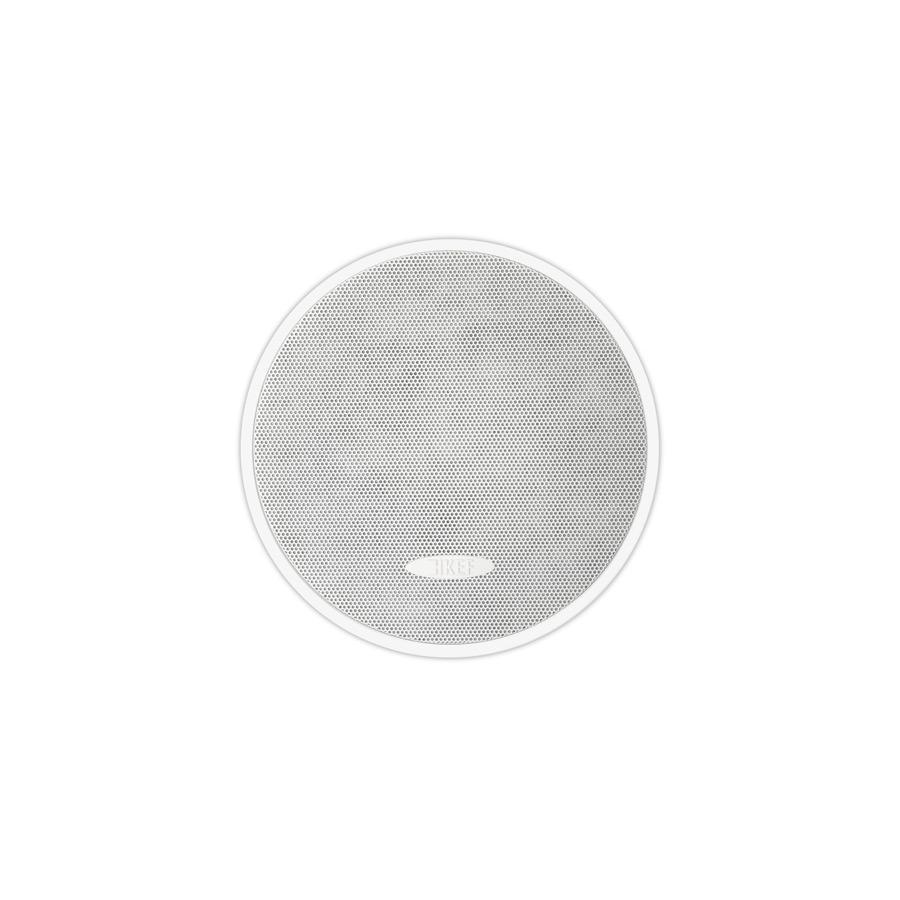

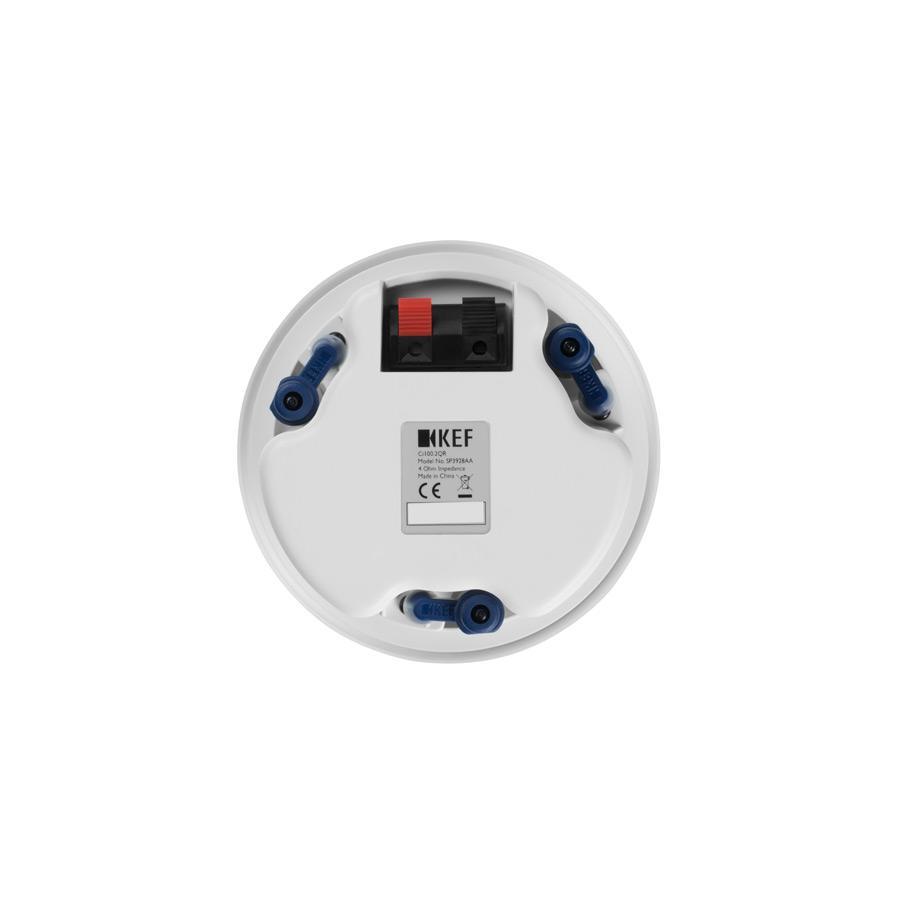

Ci100.2QR
The popular Soundlight Series is yet another major innovation from KEF. When installed, Soundlight speakers are so tiny that they blend in with halogen light fixtures yet will amaze you with their astonishing performance, thanks to KEF's patented Uni-Q's exceptionally wide dispersion.
The Details
FEATURES
UTB™ Ultra-Thin Bezel
75mm (3in.) Uni-Q driver
16mm (0.6in.) Aluminium dome tweeter with tangerine waveguide
Removable rear can
Magnetic grille
Paintable grille and bezel
Weather Resistant Construction
IP64 certified
75mm (3in.) Uni-Q driver
16mm (0.6in.) Aluminium dome tweeter with tangerine waveguide
Removable rear can
Magnetic grille
Paintable grille and bezel
Weather Resistant Construction
IP64 certified
SPECIFICATIONS
Nominal Impedance
4 Ohms
Sensitivity
83dB (2.83V/lm)
Frequency Response
90Hz-27kHz (+/-6dB)
130Hz-27kHz (+/-6dB) with back can
130Hz-27kHz (+/-6dB) with back can
Crossover Response
3.5kHz
Drive Units
LH: 75mm (3in.) Uni-Q
HF: 16mm (0.6in.)
HF: 16mm (0.6in.)
Recommended Amplifier Power
10 - 50W
Product External Dimensions
Diameter: 136mm (5.4in.)
Depth: 57mm (2.2in.)
Depth: 110mm (4.3in.) with back can
Depth: 57mm (2.2in.)
Depth: 110mm (4.3in.) with back can
Cut-Out Dimensions
Diameter: 118mm (4.6in.)
Mounting Thickness
Ceiling Thickness (Maximum): 22mm (0.87 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Mounting Depth From Surface
52mm (2in.)
103mm (4.1in.) with back can
103mm (4.1in.) with back can
Net Weight
0.50kg (1.10lbs)
0.65kg (1.44lbs) with back can
0.65kg (1.44lbs) with back can
Unit Measurement
Piece
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
Please visit our Ci Software Download page for more details.
